Maintain proper ARIA role hierarchy

***This document provides helpful tips to improve your site's accessibility. While it doesn’t guarantee 100% compliance, it’s a great starting point to make your website more inclusive and user-friendly.***

Identification

Certain ARIA roles must contain particular children elements (Rule ID: aria-required-children)

Applicable Standards

• WCAG 2.0, 2.1, 2.2 Level A (1.3.1)

• EN 301 549

• WAI-ARIA 1.1

Impact

Critical level impact affecting:

• Blind users

• Deafblind users

• Users with mobility impairments

Proper Implementation

Elements with specific ARIA roles must contain required child elements with appropriate roles. Key relationships can be established through:

• DOM hierarchy

• ARIA relationship attributes

• Proper parent-child role combinations

Examples of Correct Usage

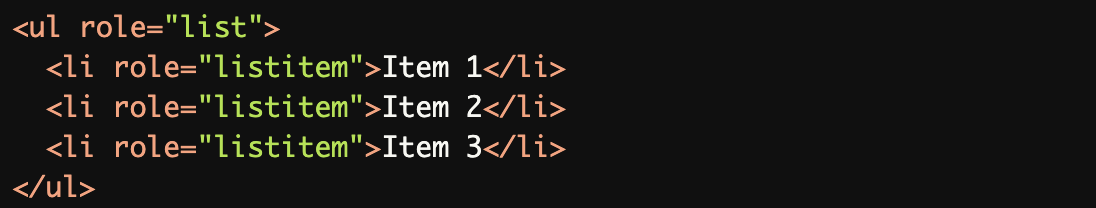

1. role="list" Contains role="listitem":
role="list" contains role="listitem" elements, ensuring the hierarchy is correct and screen readers announce the list structure properly.

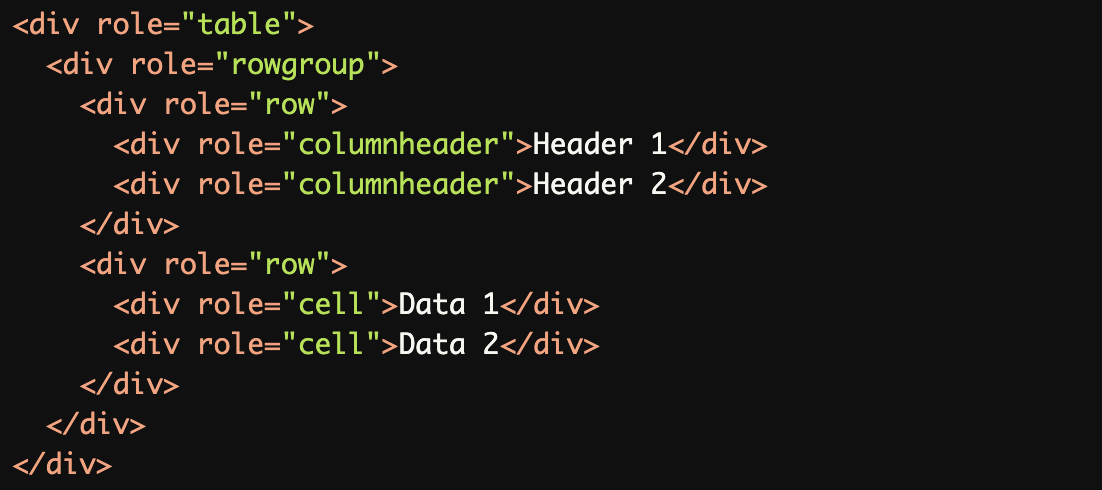

2. role="table" Contains role="rowgroup" and role="row":
role="table" correctly contains role="rowgroup", which in turn contains role="row" and its children (role="cell" and role="columnheader").

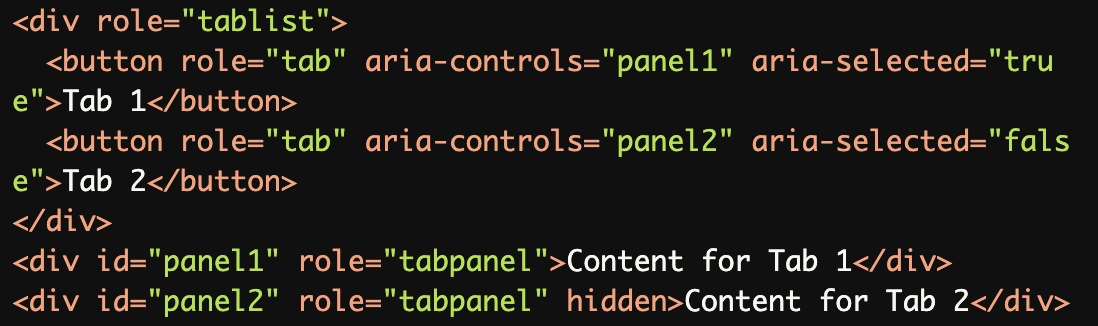

3. role="tablist" Contains role="tab" and role="tabpanel":role="tablist" contains role="tab" elements, and each role="tab" is associated with its corresponding role="tabpanel".

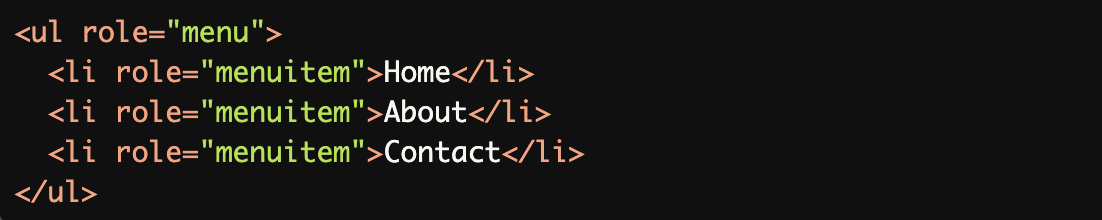

4. role="menu" Contains role="menuitem":
role="menu" contains role="menuitem" elements, ensuring the menu structure is accessible.

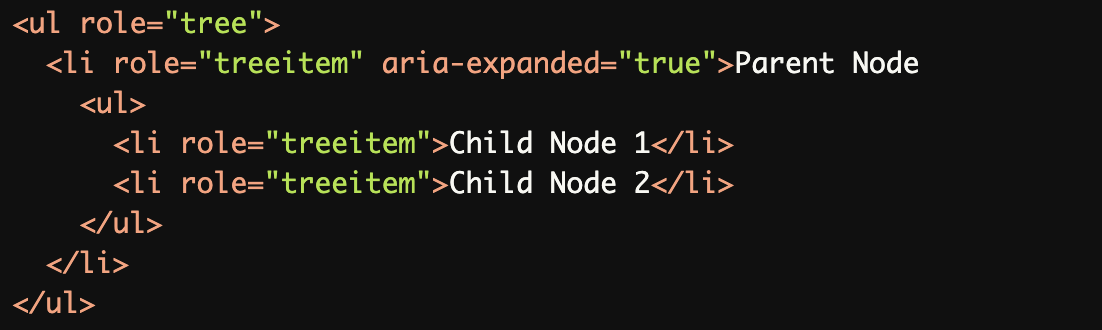

5. role="tree" Contains role="treeitem":
role="tree" contains role="treeitem" elements, and nested role="treeitem" elements form a proper hierarchy.

Common Errors to Avoid

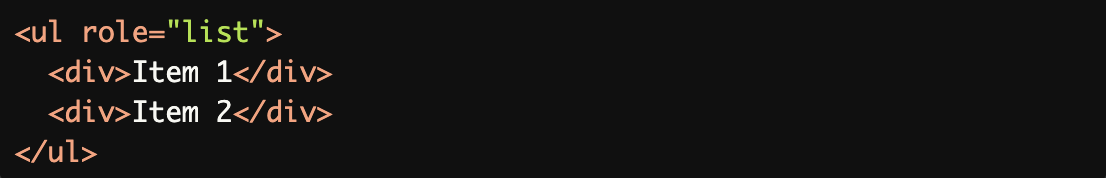

1. role="list" Without role="listitem":
role="list" must contain role="listitem" elements. Using <div> instead of role="listitem" breaks the hierarchy.

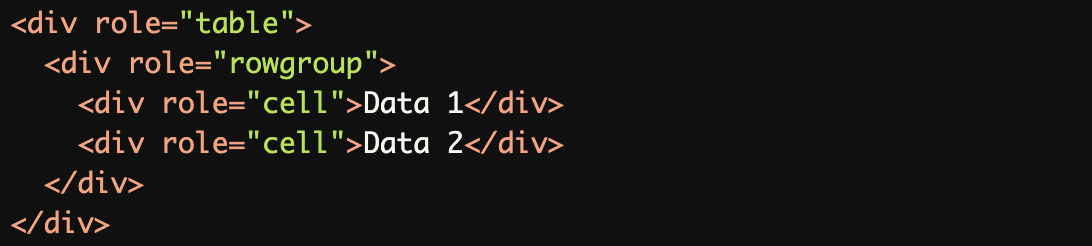

2. role="rowgroup" Without role="row":
role="rowgroup" must contain role="row" elements. Placing role="cell" directly inside role="rowgroup" is incorrect.

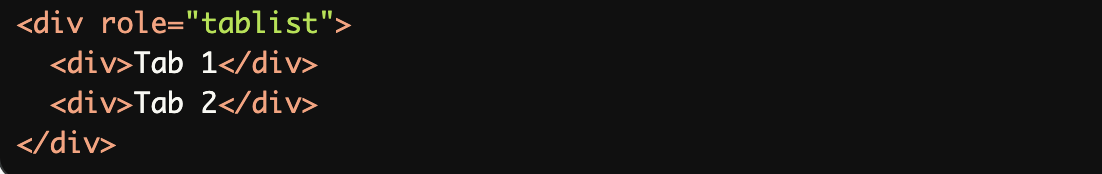

3. role="tablist" Without role="tab" or role="tabpanel":
role="tablist" must contain role="tab" elements. Using plain <div> elements instead of role="tab" makes the structure inaccessible.

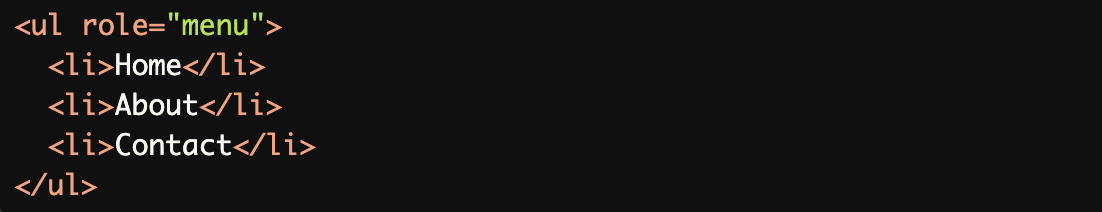

4. role="menu" Without role="menuitem":
role="menu" must contain role="menuitem" elements. Using plain <li> elements without role="menuitem" breaks the accessibility of the menu.

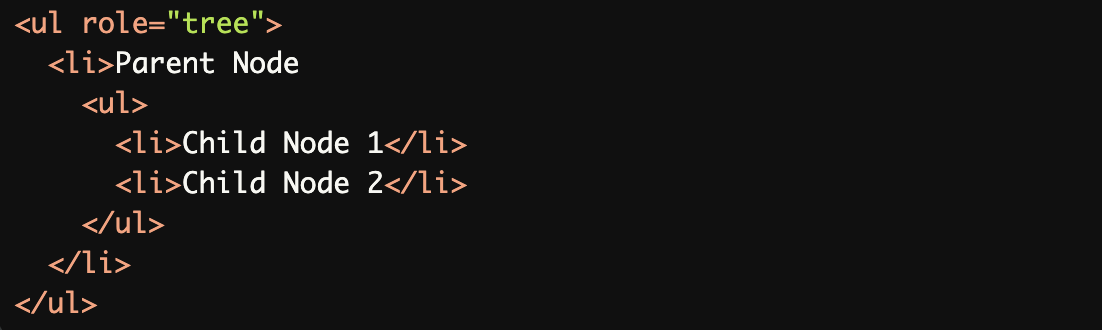

5. role="tree" Without role="treeitem":
role="tree" must contain role="treeitem" elements. Using plain <li> elements instead of role="treeitem" causes screen readers to misinterpret the structure.

Rationale

• Ensures proper semantic structure

• Enables correct interpretation by assistive technologies

• Maintains context and relationships

• Facilitates proper navigation

• Critical for interactive components

Evaluation Method

1. Inspect the Code

   • Verify that:

     • ARIA parent roles contain the required child roles.

     • The hierarchy matches the WAI-ARIA specification for each role.

     • Relationships are clear and logical.

2. Test with Assistive Technology

   • Use a screen reader (e.g., NVDA, JAWS, or VoiceOver) to confirm:

     • Parent-child relationships are announced correctly.

     • Interactive elements behave as expected within their hierarchical roles.

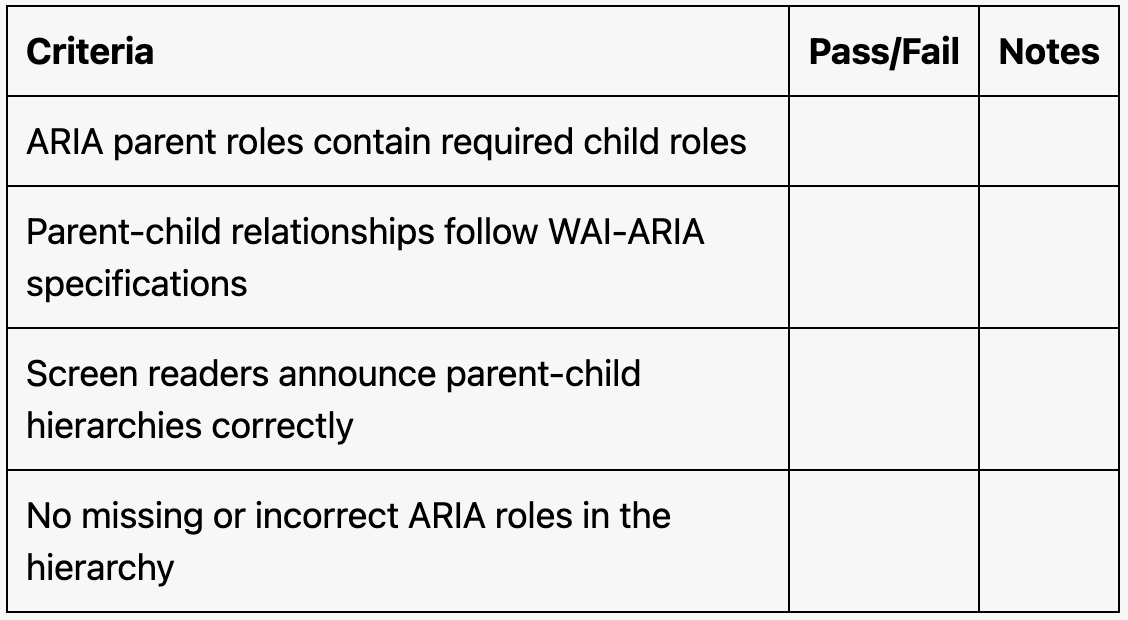

Evaluation Checklist
