Label ARIA treeitem elements descriptively

***This document provides helpful tips to improve your site's accessibility. While it doesn’t guarantee 100% compliance, it’s a great starting point to make your website more inclusive and user-friendly.***

Identification

ARIA treeitem nodes must have an accessible name (Rule ID: aria-treeitem-name)

Applicable Standards

• Deque Best Practice

Impact

Serious level impact affecting:

• Blind users

• Low vision users

• Users with mobility impairments

Proper Implementation

Treeitem elements must have an accessible name using one of:

• Inner text content

• aria-label attribute

• aria-labelledby reference

• title attribute

• Text must be discernible to screen readers

Examples of Correct Usage

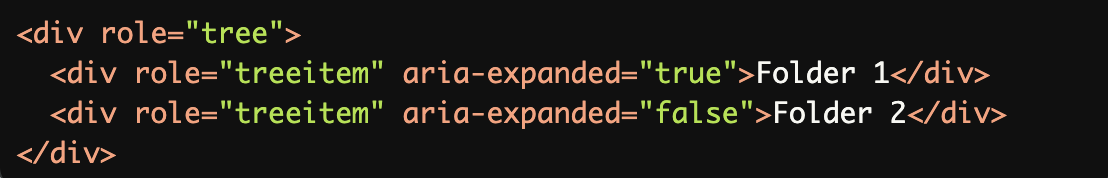

1. Using Inner Text for Accessible Names:
   Accessible names are provided using inner text (Folder 1, Folder 2), allowing screen readers to announce the tree items correctly.

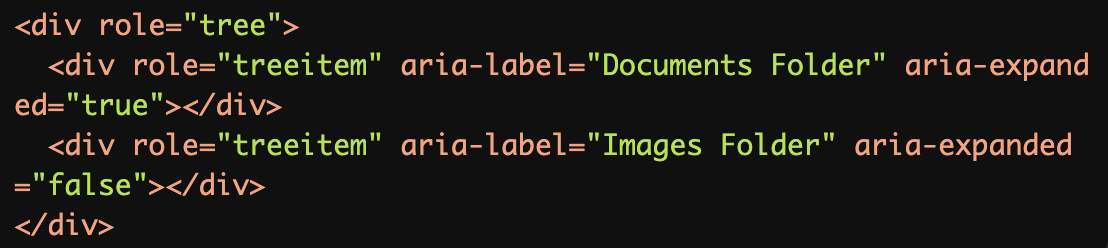

2. Using aria-label for Custom Labels:
   The aria-label attribute provides accessible names (Documents Folder, Images Folder) for tree items with no visible text.

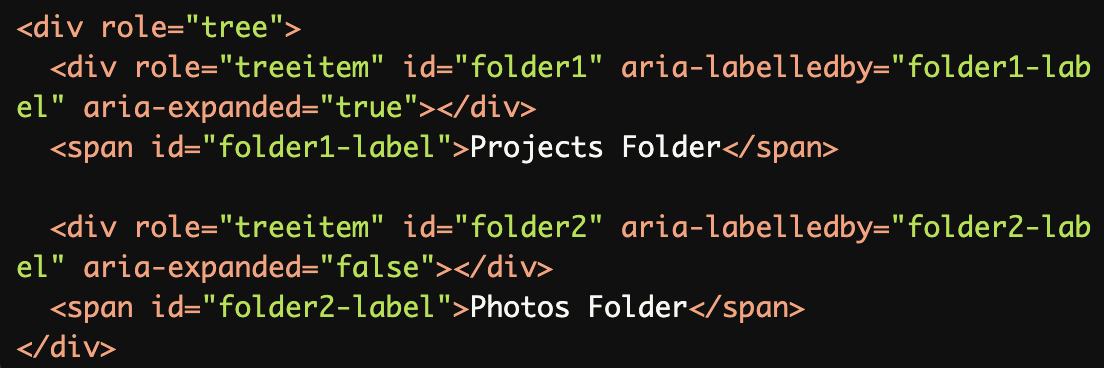

3. Using aria-labelledby to Reference a Label:
   The aria-labelledby attribute references external elements (folder1-label, folder2-label), providing accessible names for screen readers.

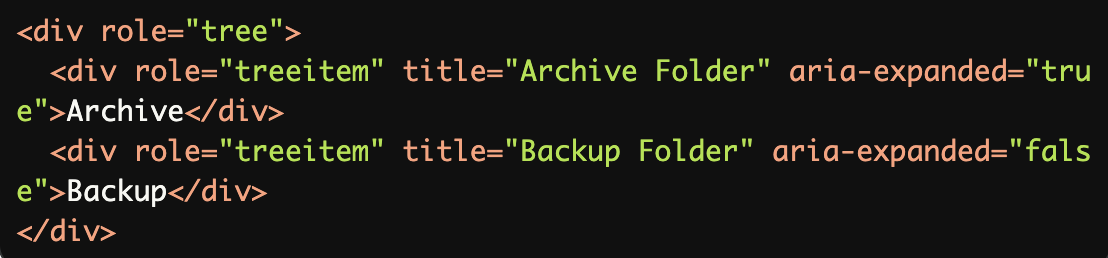

4. Using the title Attribute for Tooltip-Like Names:
   The title attribute provides additional accessible names (Archive Folder, Backup Folder) that are announced by screen readers.

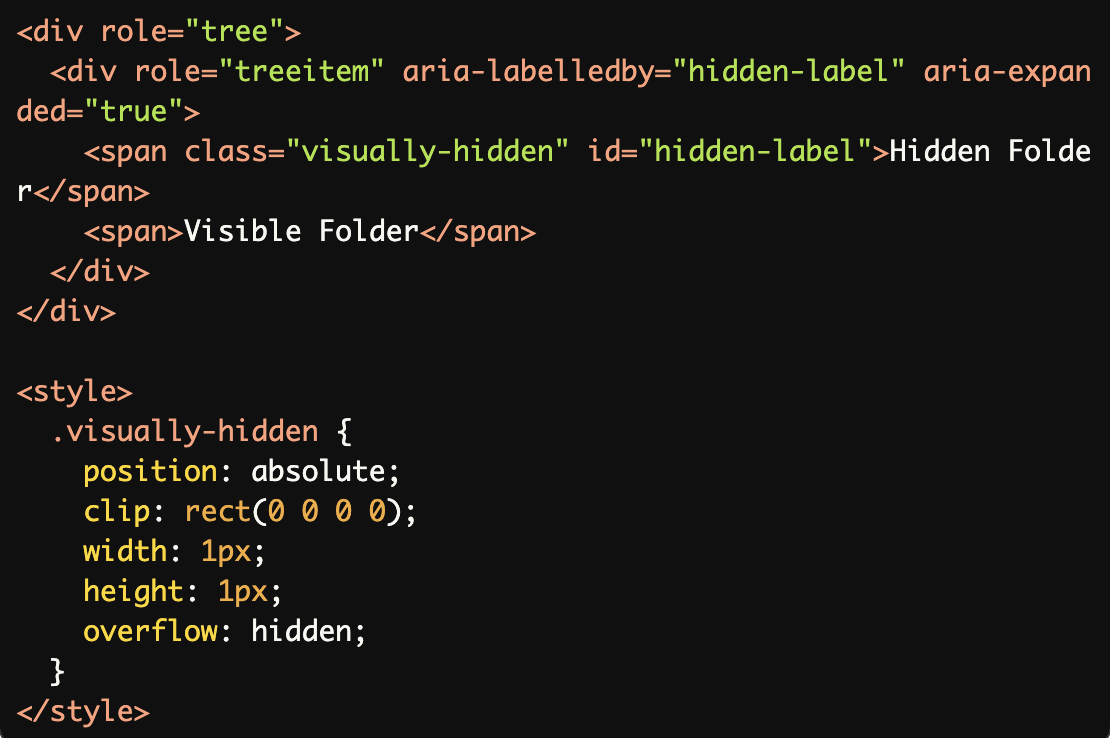

5. Combining Visual and Hidden Accessible Names:
   A visually hidden label (Hidden Folder) is combined with visible text (Visible Folder) using aria-labelledby, ensuring screen reader users get detailed information.

Common Errors to Avoid

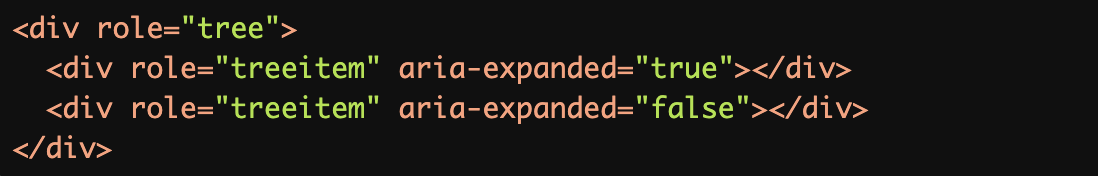

1. Missing Accessible Name:
   Tree items lack accessible names, resulting in screen readers announcing them as "blank" or "unlabeled."

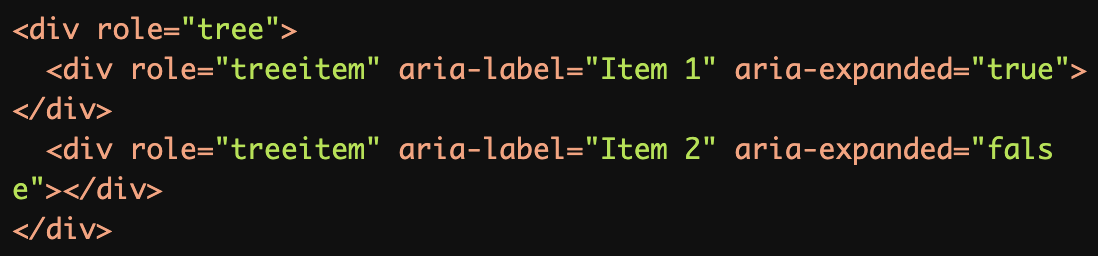

2. Using Non-Descriptive Names:
   Non-descriptive labels like "Item 1" and "Item 2" fail to convey meaningful information about the tree items.

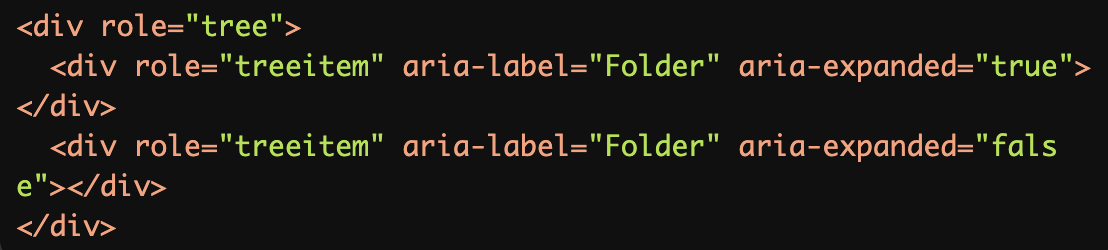

3. Duplicate Accessible Names:
   Duplicate labels (Folder) confuse users navigating through the tree, as they cannot distinguish between the items.

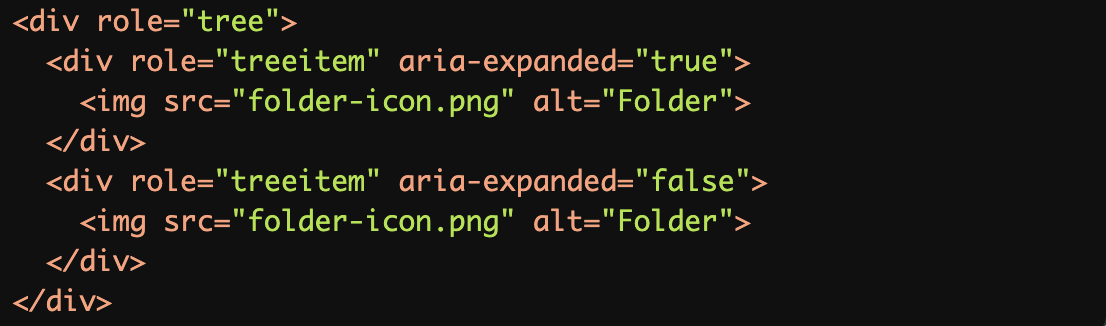

4. Over reliance on Visual Content Without Labels:
   The alt text (Folder) is too generic, and no accessible name is provided for the tree items, making them indistinguishable.

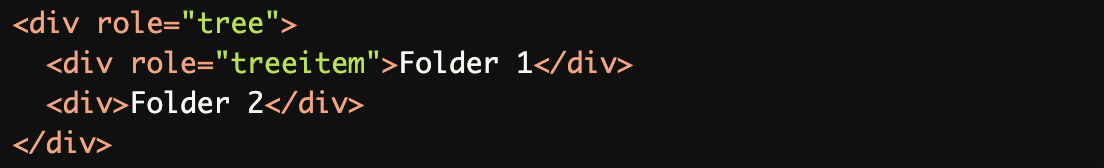

5. Using ARIA Roles Incorrectly:
   The second item lacks the role="treeitem" attribute, making it inaccessible to screen readers as part of the tree structure.

Rationale

• Essential for screen reader users to navigate tree structures

• Ensures tree items are identifiable and meaningful

• Enables proper hierarchical navigation

• Critical for file system-like interfaces

Evaluation Method

1. Inspect the Code

   • Verify that:

     • Each treeitem has an accessible name provided by inner text, aria-label, aria-labelledby, or title.

     • Accessible names are meaningful and descriptive.

     • No duplicate names exist unless intentionally part of the design.



2. Test with Assistive Technology

   • Use a screen reader (e.g., NVDA, JAWS, or VoiceOver) to confirm:

     • Tree items are announced clearly with their role and accessible names.

     • Navigation through the tree structure is logical and intuitive.

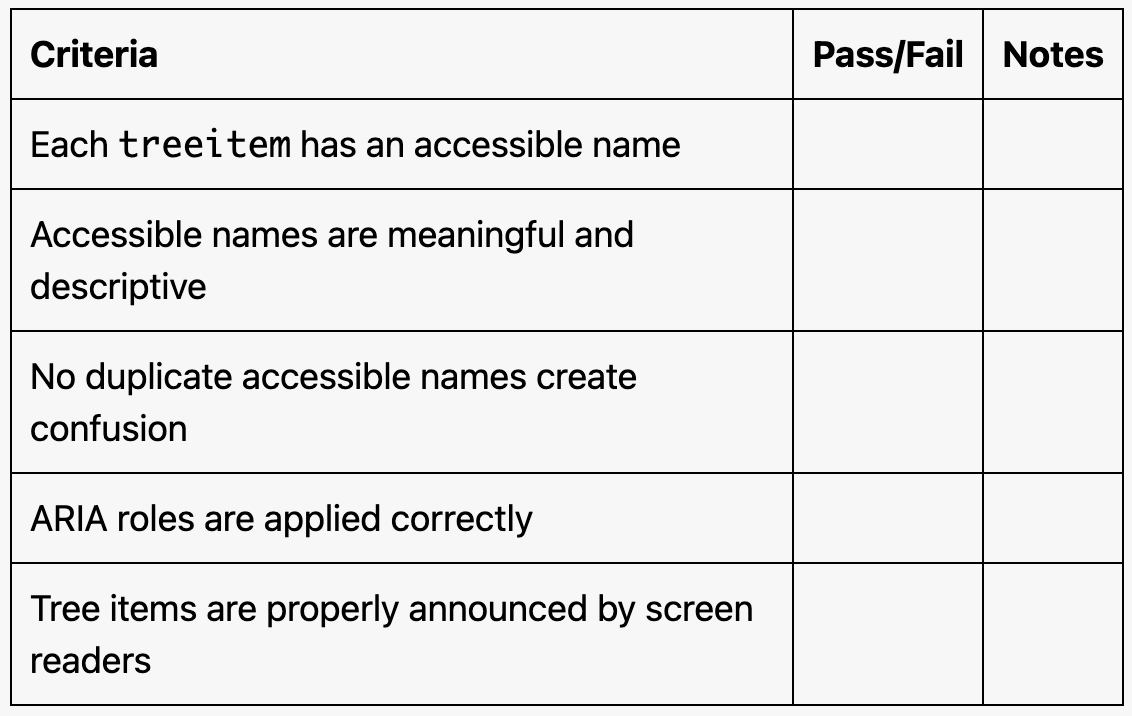

Evaluation Checklist
